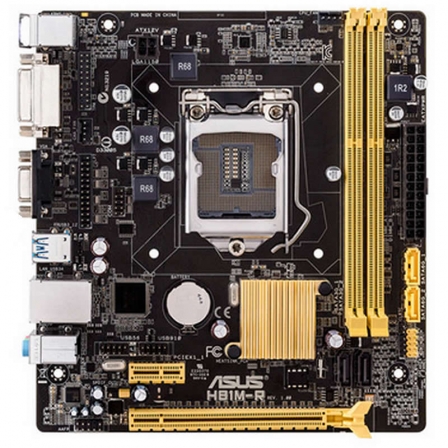

ASUS90MB0JY0-M0ECY1
Marca: ASUS
P/N: 90MB0JY0-M0ECY1
EAN: 4716659828778
Disponibilidad: Disponible

57,50 ¤

*IVA Incluido
Especificaciones técnicas
  • CPU
  • LGA1150 socket para 4 Generación Intel® Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  • Soporta CPU de 22nm
  • Soporta Intel® Turbo Boost Technology 2.0
  • * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  • ** Refer to www.asus.com for Intel® CPU support list.
  • Chipset
  • Intel® H81 Express Chipset
  • Memoria
  • 2 x DIMMs, max.16GB, DDR3 1600/1333/1066 MHz, non-ECC, un-buffered memory
  • Dual channel memoria
  • Soporta Intel® Extreme Memory Profile (XMP)
  • * Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL for details.
  • **Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 MHz.
  • *** Refer to www.asus.com for the Memory QVL(Qualified Vendors List).
  • Slots Expansión
  • 1 x PCI Express x16 slot
  • 1 x PCI Express x1 slots
  • Gráficos
  • Integrado Graphics Processor - Intel® HD Graphics support
  • Salida de Video: DVI-D/D-Sub port
  • Soporta DVI-D con max. resolución up to 1920 x 1200 @60Hz
  • Soporta D-Sub con max. resolución 1920x1200@60Hz
  • Máxima memoria compartida 1024MB
  • Storage Intel® H81 Express Chipset:
  • 2 x Serial ATA 6.0 Gb/s connectors
  • 2 x Serial ATA 3.0 Gb/s connectors
  • Supports Intel® Rapid Start Technology* and Intel® Smart Connect Technology**
  • *Due to the limitation of the Intel® H81 chipset, Intel® Rapid Start Technology can be configured only from the BIOS Setup program.
  • **These functions will work depending on the CPU installed.
  • LAN
  • Realtek® 8111GR Gigabit LAN
  • Audio
  • Realtek ALC891 8-channel High Definition Audio CODEC
  • Supports Jack-Detection and Front Panel Jack-Retasking
  • * Use a chassis with HD audio module in the front panel to support an 8-channel audio output
  • USB
  • Intel® H81 Express Chipset- supports ASUS USB 3.0 Boost
  • 2 x USB 3.0/2.0 ports at back panel (blue)
  • Intel® H81 Express Chipset
  • 6 x USB 2.0/1.1 ports (4 ports at mid-board,2 ports at the back panel)
  • Panel trasero I/O
    • 1 x PS/2 keyboard (purple)
    • 1 x PS/2 mouse port (green)
    • 2 x USB 3.0/2.0 ports
    • 2 x USB 2.0/1.1 ports
    • 1 x DVI port
    • 1 x D-Sub port
    • 1 x LAN (RJ-45) port
    • 3 x Audio jacks support 8-channel audio output
  • Conectores Internos I/O
    • 2 x USB 2.0/1.1 connectors support additional 4 USB 2.0/1.1 ports
    • 2 x SATA 6.0Gb/s connectors
    • 2 x SATA 3.0Gb/s connectors
    • 1 x 4-pin CPU Fan connector (PWM mode)
    • 1 x 4-pin Chassis Fan connector (PWM mode)
    • 1 x Front panel audio connector
    • 1 x 24-pin EATX Power connector
    • 1 x 4-pin EATX 12V Power connector
    • 1 x COM header
    • 1 x LPT header
    • 1 x TPM header
    • 1 x CLRTC jumper
    • 1 x Speaker connector
    • 1 x System Panel connector
  • Accessorios
  • 2 x Serial ATA 6.0Gb/s cables
  • 1 x I/O shield
  • 1 x Support DVD
  • 1 x User´s manual
  • Soporte
  • DVD Drivers
  • ASUS Utilities
  • EZ Update
  • Anti-virus software (OEM version)
  • Sistema operativo soportado
  • Windows® 8.1
  • Windows® 8
  • Windows® 7
  • Factor de forma
  • uATX
  • 19cm x 17.7cm
